User interface

Everything you need to know about the trakked user interface is explained on this page.

You know it from Contao, in the mode "edit multiple" several checkboxes can be selected or deselected at once. To do this, hold down the Shift key while clicking. In addition, you can select an installation on desktop as well as on mobile by clicking on it for a long time. By moving the mouse or swiping your finger, you can select additional installations.

Do you want to add the same label to several installations? No problem, just use the multiple selection. By clicking on the trakked logo in front of each installation, you can select several installations and perform various actions.

The following actions are currently available:

• Move to organisation
• Refresh system information
• Prepare updates
• Discard updates
• Edit labels
• Quicklinks

The context menu is available for desktop users with a viewport of 1024 pixels or more. To activate it, position the pointer on a closed installation and use the right mouse button or the secondary click. Then select the desired action.

For a Contao installation with an active Manager connection, the following actions are available:

• Prepare update
• Add reminder
• Refresh system information
• Quicklinks

Depending on the status of the update, there are the following entries:

• Prepare update
• Show update history
• Install update
• Discard update
• Mark as done

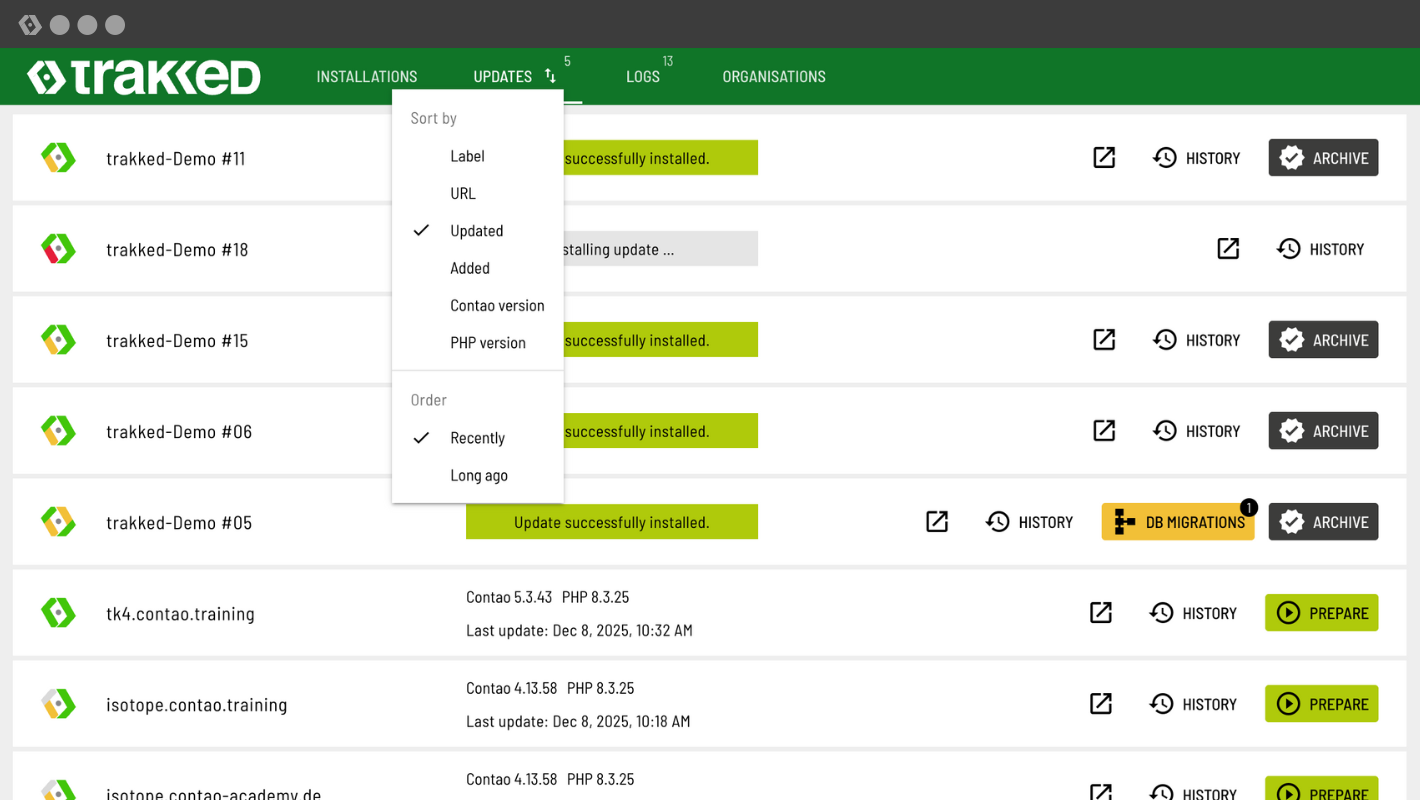

In the navigation bar, you will find an additional icon to the right of the menu item. Clicking on it opens the sorting options. You can now sort by different fields:

• Name
• Installation URL
• Updated
• Added
• Contao version
• PHP version

For text fields such as "Name" or "URL of installation," you can sort in ascending (A-Z) or descending (Z-A) order. For date fields such as "Updated" or "Added," you can choose between "recently" and "a long time ago."

The selected sorting order is saved. Even after reloading, you will see your installations in the desired order. The sorting applies to both views: installations and updates.

In the log viewer, sorting in the same way as for installations does not make sense. That is why we have defined different fields here:

• Last seen
• First seen
• Occurences

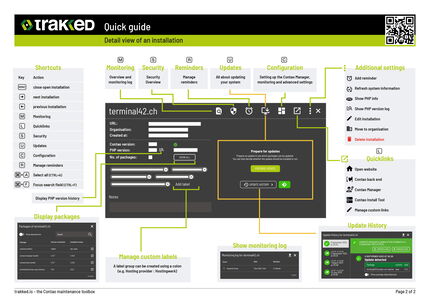

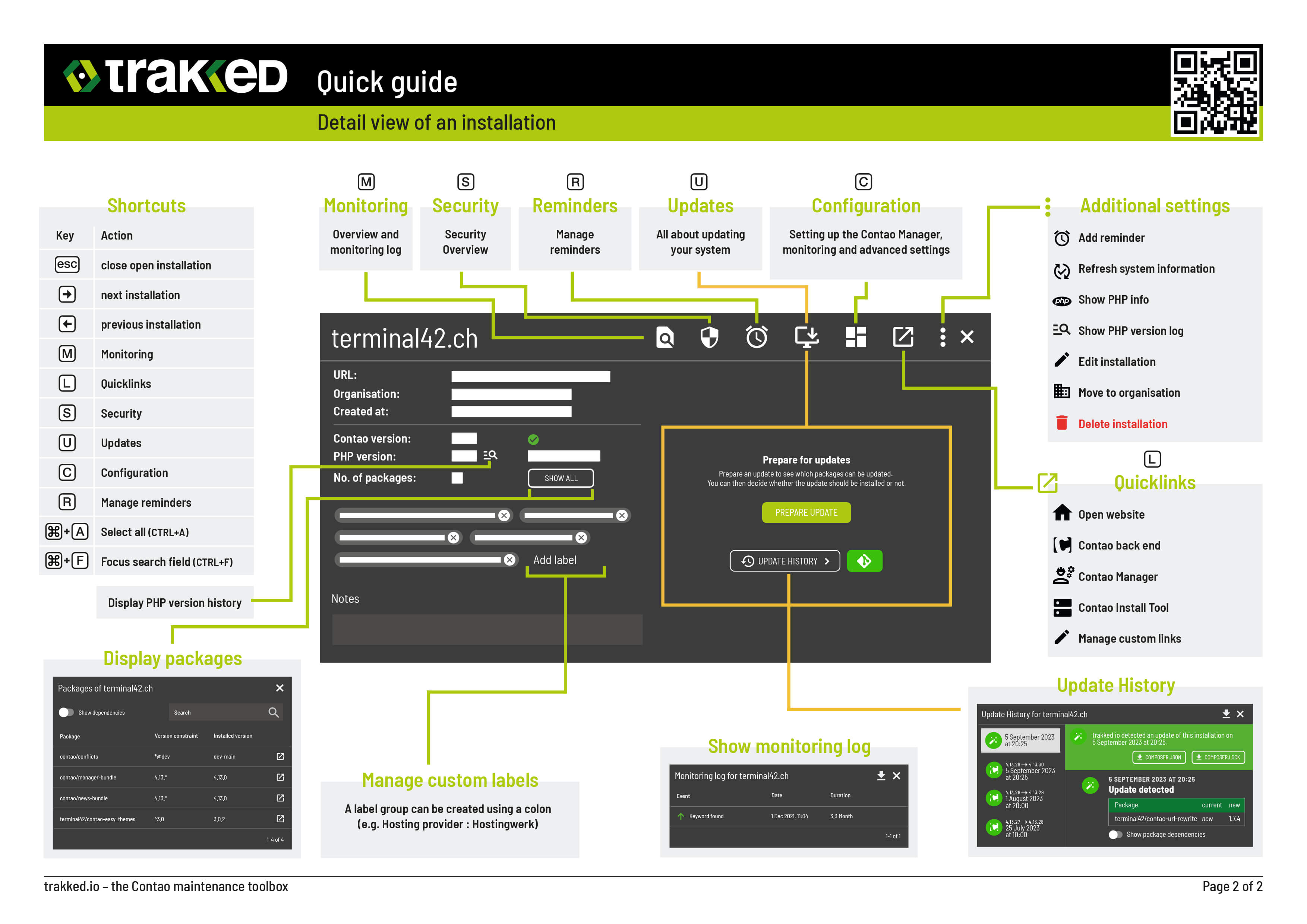

Where was that again? Admittedly, it is not always easy to remember all the icons, keyboard shortcuts and functions of trakked. That's why we have created an overview for you, which you can download as a PDF and print out.

To give you a quick overview of the status of your installations, we use the four bars of our trakked logo as a traffic light system. In case of warnings or errors, the affected labels (Contao version, PHP version, ...) are also colored accordingly.

In the following graphic you can see the meaning of the individual areas:

Installation Navigation

• Esc — Close/open installation
• → — Next installation
• ← — Previous installation
• Ctrl/Cmd + A — Select all entries

Detail View Sections

• M — Monitoring
• S — Security
• U — Updates
• C — Configuration
• R — Reminders
• L — Open direct links

Filters & Labels

• Ctrl/Cmd + F — Focus search field
• Alt/Opt + Click — Select filter/label and reset others
